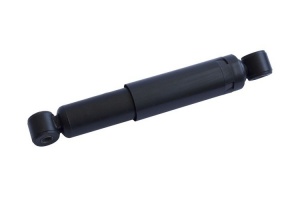

Alko black shock absorber 4000-7500 KG

The innovative AL-KO Octagon Shock Absorbers provide superior levels of comfort and road grip, whilst improving general stability of the trailer. Black shock absorbers are intended for either single axles with a maximum weight restriction of 4000 kg or tandem axles with a maximum weight restriction of 7500 kg.

Designed specifically to complement the ALKO Euro-Axle, the Octagon Shock Absorber is available as a comprehensive retro-fit kit. Getting on the road with your Octagon Shock Absorber could not be simpler.

Black shock absorber
made by AL-KO
Single axle: 4000 kg
Tandem axle: 7500 kg

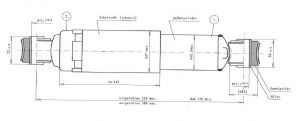

Dimensions:

Mounting length: 255 - 385 mm
Minimum and maximum extension length: 290 - 420 mm
Mounting bolt diameter (not supplied): 12 mm
Bush length: 32 mm
Mounting head diameter: 34 mm
